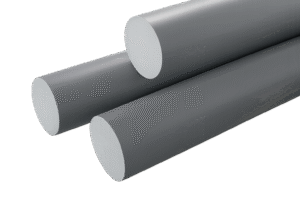

Product Details
- Diameter: 15mm to 150mm
- Length: 1000mm, Custom length on request
- Color: Light Grey
Features and Benefits of STARKE CPVC Solid Rods:
High Chemical Resistance
Unaffected by most acids, bases, and salts, CPVC rods excel in harsh chemical environments
Flame Retardancy
Inherently flame-retardant and have low flammability
Mechanical Strength
High mechanical strength, tensile strength and hardness, Low impact strength
Electrical Insulation
Good insulation properties for electronics
Low Water Absorption
Maintain integrity in humid or wet environments due to very low water absorption
Good adhesiveness and paintability
Suitable for bonding and surface finishing in various applications
Applications of CPVC Solid Rod
CPVC Material Properties Chart (Yet to update)
Properties | Value | Unit | Test Method | |||||
|---|---|---|---|---|---|---|---|---|
Color | Natural | |||||||
Density | 1.3±0.01 | g/cm3 | ISO 1138 | |||||
Water Absorption (25℃.24Hrs) | 0.05% | ISO 62 | ||||||
Melting temperature | 343 | ℃ | ISO 11357 | |||||
Distortion Temperature | 163 | ℃ | ISO 75-1/-2 | |||||
Continuous service Temperature | 260 | ℃ | UL 74685 | |||||
Thermal expansion coefficient | 4.7*10-6 | /K | ASTM D696 | |||||
Tensile Strength (23℃) | 100 | MPa | ISO 527 | |||||
Tensile modulus (23℃) | 3.8 | GPa | ISO 527 | |||||
Tensile Elongation (23℃) | 27 | % | ISO 527 | |||||
Bending Strength (23℃) | 163 | MPa | ISO 178 | |||||
Bending Modulus (23℃) | 3.5 | GPa | ISO 178 | |||||
Impact Strength(23℃) | 123 | MPa | ISO 604 | |||||
Lzod Impact Strength (No notched) | No Break | kJ/m2 | ISO 180/U | |||||
Poisson Ratio | 0.4 | ISO 527-2 | ||||||
Rockwell Hardness | 118 | GB3398.2 | ||||||
Flammability | V-0 | UL 94 (1.5 mm) | ||||||
Dielectric strength | 18 | KV/mm | IEC 60243-1 | |||||
Dielectric constant | 3.2 | IEC 60250 | ||||||
Thermal Conductivity | 0.28 | W/（m·K） | ISO 22007 | |||||
Surface Resistance | 1015 | Ω | IEC 90093 | |||||
